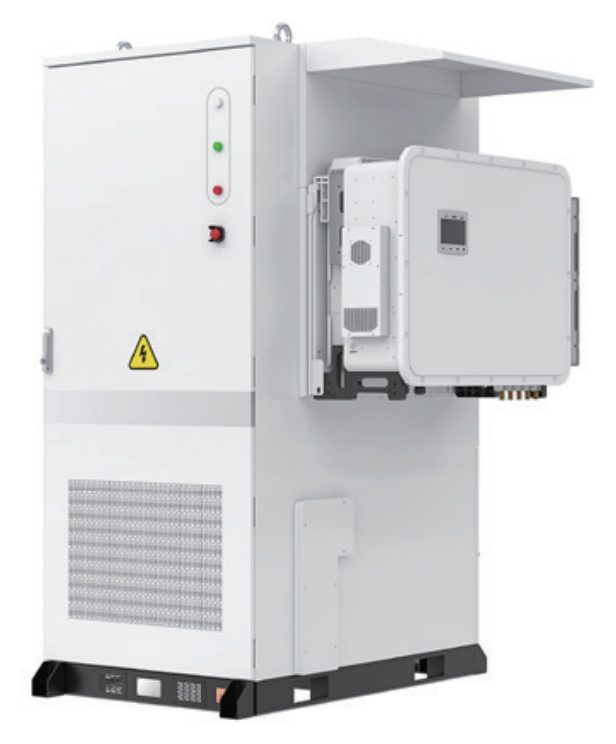

Liquid-Cooled Energy Storage Cabinet GLC-261
- 261 kWh / 125 kW
- LFP 314Ah
- Liquid-Cooled
- DC Side
Send us your load list and we size it.
261 kWh liquid-cooled DC-side energy storage cabinet built on 1P260S LFP architecture. Cell-to-cell temperature difference is held below 3 ℃ by direct liquid cooling, and the cabinet pairs with either an external PCS or a hybrid inverter for commercial and industrial peak shaving, demand charge management and solar self-consumption.
Best for: Longer calendar life through active cell temperature control
Key Specifications
Battery Parameters
| Battery Cell | LFP 314Ah |
|---|---|
| Battery Pack | 166.4 V 314 Ah |
| Rated Voltage | 832 V (5-module series) |
| Rated Energy | 261 kWh |
| Voltage Range | 728 – 936 V |
Operational Parameters
| Combination Method | 1P260S |
|---|---|
| Rated Power | 130.5 kW |
| Rated Charge / Discharge Rate | 0.5P |
| Standard Charge / Discharge Current | 157 / 157 A |
| Operating Temperature Range | -20 ~ 50 ℃ |
| Relative Humidity | RH ≤ 95% |
| Altitude | <2000 m |
| Cooling Method | Liquid cooling |
| Coolant | Ethylene glycol aqueous solution (50% v : 50% v) |
System Parameters
| Number of Cycles | 8000 cycles, EOL 70%, DOD 90% |
|---|---|
| Fire Protection System | Aerosol |
| Detector Type | Warmth sensation, smoke sensation |
| Ingress Protection | IP54 |
| Dimension (W×D×H) | 970 × 1420 × 2320 mm |
| Weight | ≈3 t |
Where It Fits
- Factories and campuses managing a demand charge
- Sites with a sharp morning or evening peak
- Backup for a line that cannot drop
- PV self-consumption on a commercial roof
Compatible Equipment
Three-phase four-wire AC 380 V at 50 Hz, RS485 / CAN, Modbus TCP/IP to a site SCADA.
