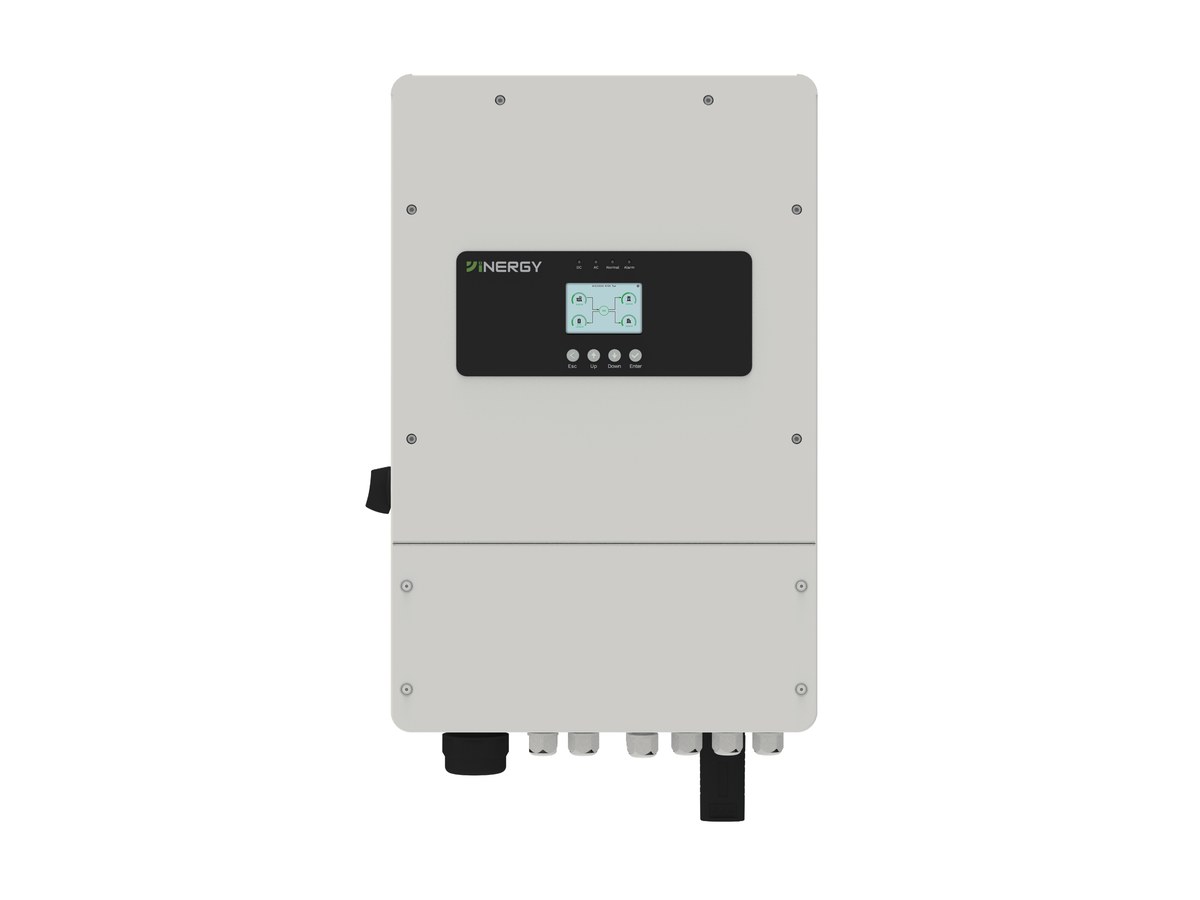

The Yienergy HI and OG families are compact hybrid and off-grid inverters from SiRay's partner brand Yienergy, covering 3 kW to 15 kW. The HI models are single and three-phase hybrids with 200% PV oversizing, 200% EPS peak for 60 seconds and up to 190 A battery current; the OG models are dedicated off-grid inverters for sites with no utility supply. Both are IP65 with Type II surge protection on AC and DC.
Best for: Homes, farms and small commercial sites that need a compact hybrid or a dedicated off-grid inverter
Key Specifications
Series
| Models | HI-1P 3-12K, HI-3P 5-15K, OG-1P 4-12K |
|---|
| Topology | Hybrid (HI) and off-grid (OG) |
|---|
| Power range | 3-15 kW |
|---|
| Phase | Single-phase / three-phase |
|---|
PV input
Off-grid
Battery
| Max charge/discharge current | 190 A |
|---|
| Start-up voltage | 80 V |
|---|
General
| Ingress protection | IP65 |
|---|
| Protection | Type II SPD on AC and DC; optional AFCI |
|---|
