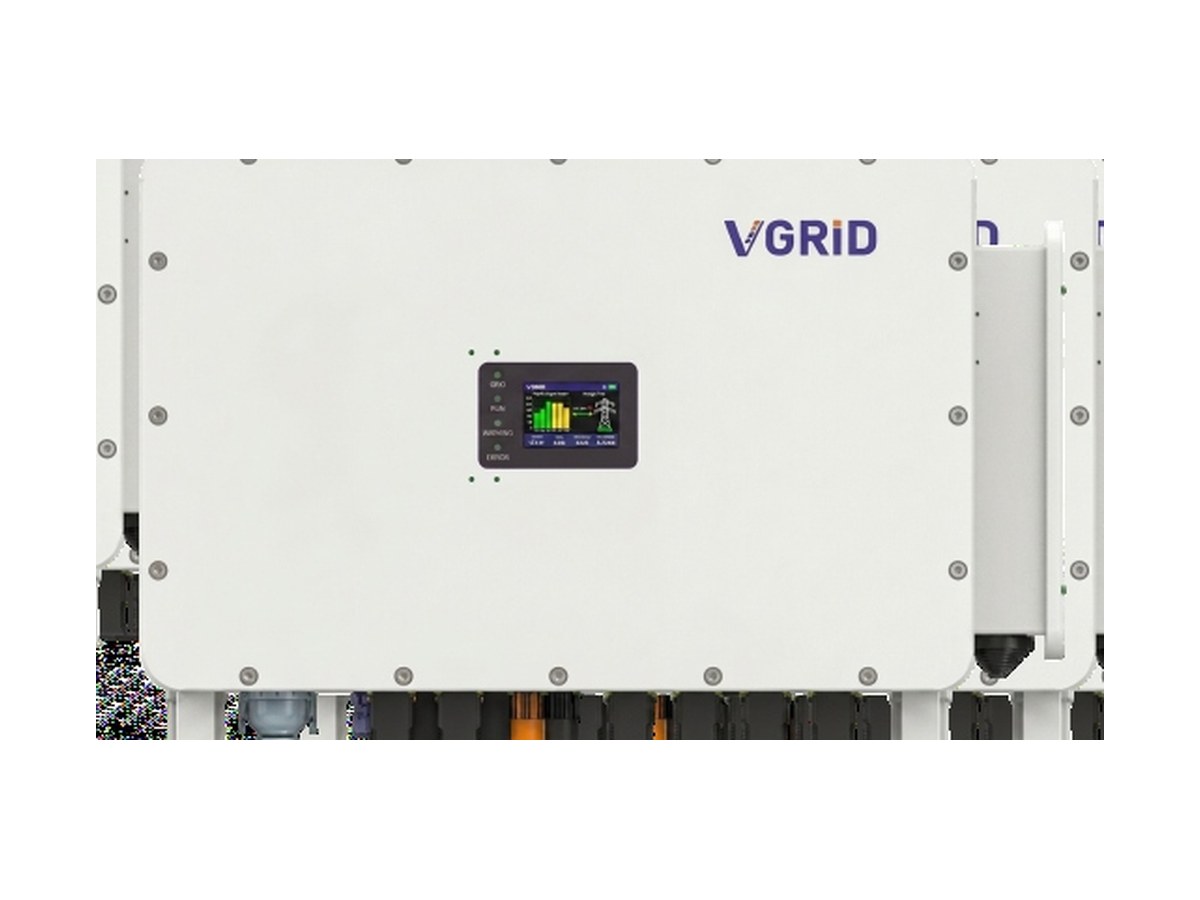

The VGRID LEONA-H135K is a 135 kW split hybrid inverter from SiRay's partner brand VGRID that separates the MPPT controllers from the converter, so PV can be wired straight in without a combiner box and the MPPT can sit next to the array. It works with a 600-950 V battery and offers PQ, VF, droop and VSG grid-forming control for island and weak-grid operation.
Best for: Commercial and industrial microgrids that want a split architecture, direct PV input and grid-forming control
Key Specifications
Series
| Topology | Split hybrid (separate MPPT and converter) |
|---|
| Power range | 135 kW |
|---|
| Phase | Three-phase |
|---|
Battery
| Battery voltage | 600-950 V |
|---|
| Max battery current | 255 A |
|---|
Grid
| Control modes | PQ / VF / droop / VSG grid-forming |
|---|
General
| PV connection | Direct PV input, no combiner box |
|---|
| EMS | Cloud AI, remote OTA, fault recording |
|---|
