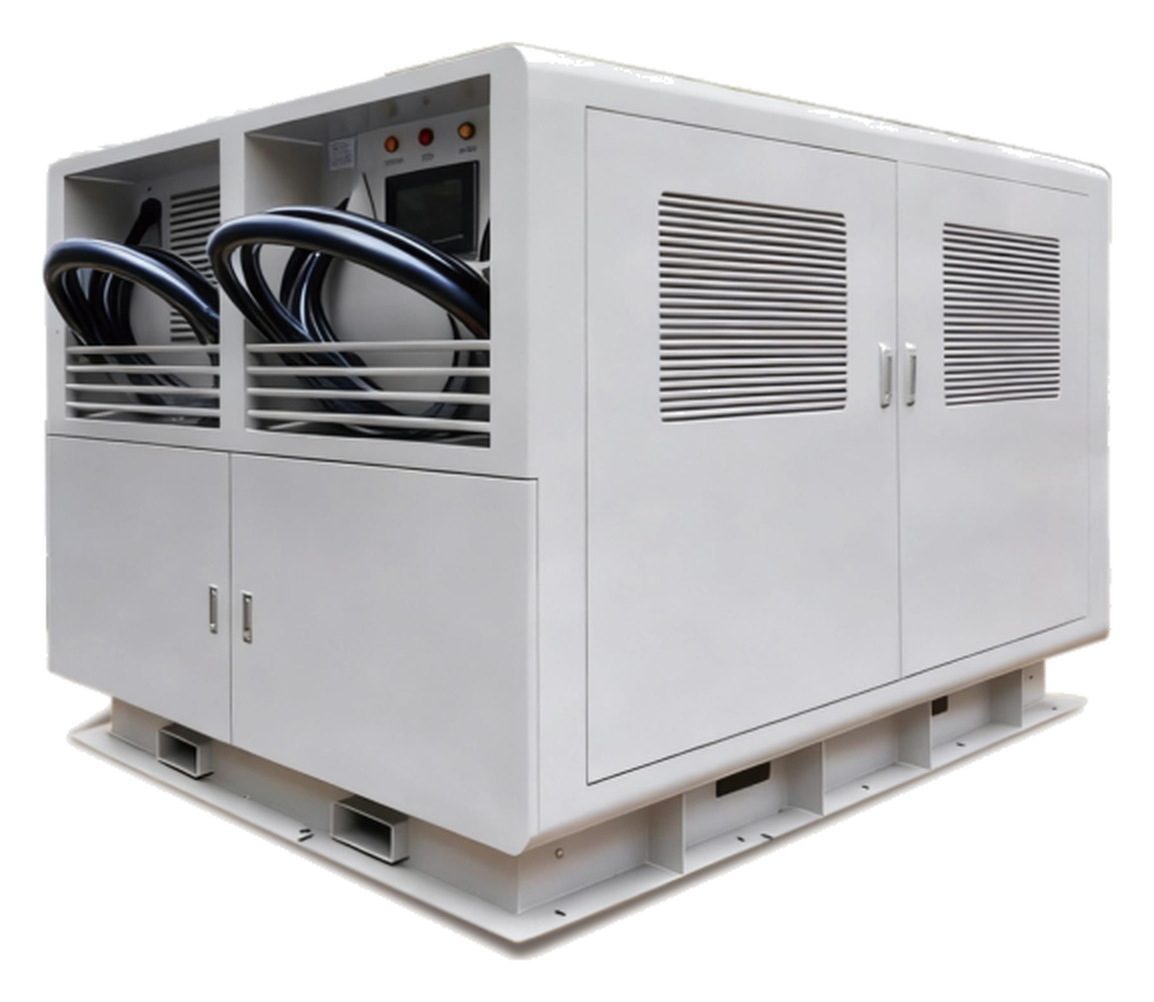

Mobile Energy Storage EV Charger X416240
- 416 kWh
- 240 kW
- Twin Gun
- Mobile
Send us your load list and we size it.
Fleet-scale reserve capacity — 416 kWh and 240 kW DC in a cabinet you can move between depots, sites and events.
Best for: Fleet-scale reserve capacity, movable between depots
Key Specifications
Battery System
| Battery Capacity | 416 kWh |
|---|---|
| Cycle Life | ≥6000 cycles (80% DOD) |
Charging Output
| Total Output Power | 240 kW (2 guns) |
|---|---|
| Output Voltage | 200 – 1000 V DC |
| Output Current | 0 – 250 A |
| Charging Gun | GB/T / CCS1 / CCS2 / CHAdeMO |
| Cable Length | 7 m |
Input & Recharge
| DC Recharge | EV DC charger |
|---|---|
| AC Recharge | Three-phase AC, 80 kW |
System & Enclosure
| Charge Mode | Single player / OCPP 1.6J |
|---|---|
| Display | 10-inch touch screen |
| Working Temperature | -10 ~ 60 °C |
| IP Rating | IP54 |
| Dimension | 2400 × 1900 × 1500 mm |
| Weight | ≈4700 kg |
Where It Fits
- Roadside rescue for a stranded EV
- Pop-up and event charging over a weekend
- Fleet reserve that moves between depots
- Construction and field sites - tools by day, vehicles by night
Compatible Equipment
GB/T, CCS1, CCS2 or CHAdeMO connectors, OCPP 1.6J back office, three-phase AC or DC recharge.
