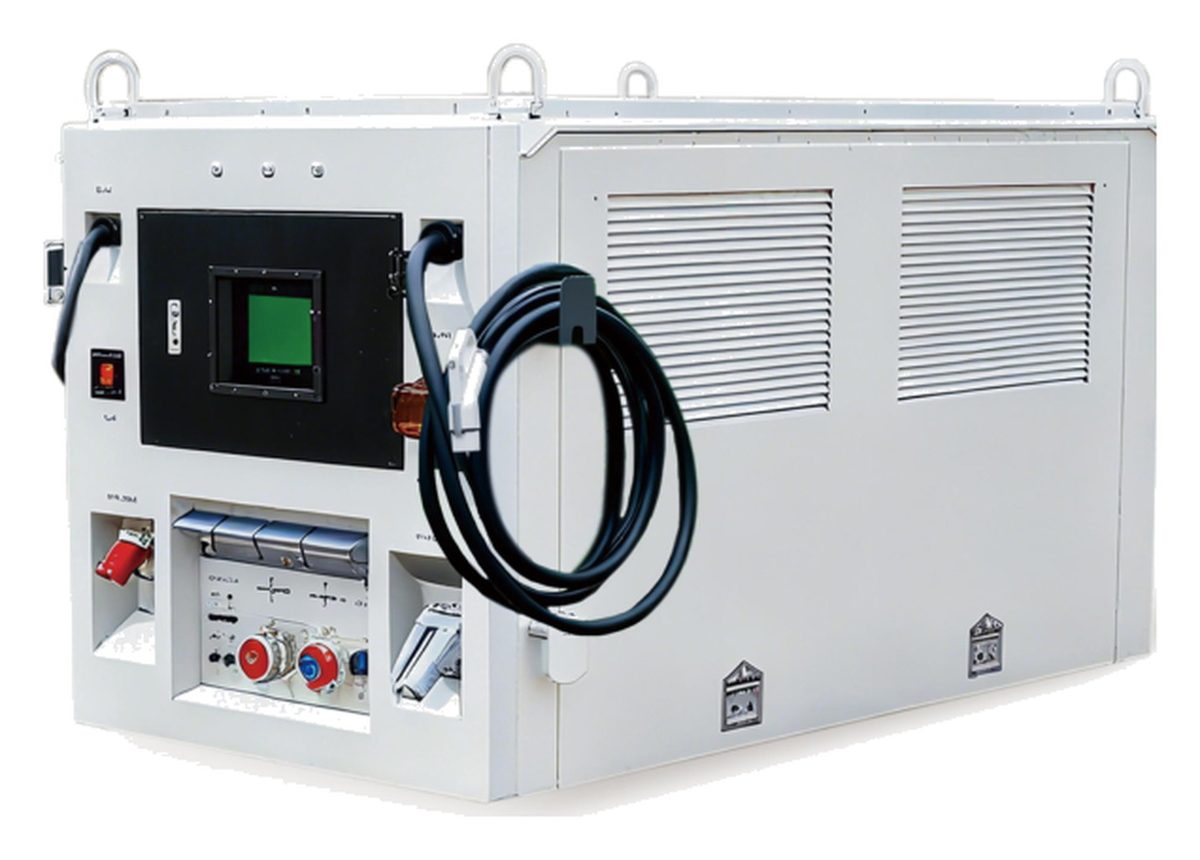

Mobile Energy Storage EV Charger X200120
- 200 kWh
- 120 kW
- Twin Gun
- AC Output
Send us your load list and we size it.
200 kWh with twin DC guns and onboard AC output — two vehicles at once, or one vehicle plus site power from the same cabinet.
Best for: Two vehicles at once, plus AC site power
Key Specifications
Battery System
| Battery Capacity | 200 kWh |
|---|---|
| Cycle Life | ≥6000 cycles (80% DOD) |
Charging Output
| AC Output | Single / three phase |
|---|---|
| Total Output Power | 120 kW (2 guns) |
| Output Voltage | 200 – 1000 V DC |
| Output Current | 0 – 250 A |
| Charging Gun | GB/T / CCS1 / CCS2 / CHAdeMO |
| Cable Length | 7 m |
Input & Recharge
| DC Recharge | EV DC charger |
|---|---|
| AC Recharge | Three-phase AC recharge |
System & Enclosure
| Charge Mode | Single player / OCPP 1.6J |
|---|---|
| Display | 10-inch touch screen |
| Working Temperature | -10 ~ 60 °C |
| IP Rating | IP54 |
| Dimension | 2660 × 1250 × 1300 mm |
| Weight | ≈2500 kg |
Where It Fits
- Roadside rescue for a stranded EV
- Pop-up and event charging over a weekend
- Fleet reserve that moves between depots
- Construction and field sites - tools by day, vehicles by night
Compatible Equipment
GB/T, CCS1, CCS2 or CHAdeMO connectors, OCPP 1.6J back office, three-phase AC or DC recharge.
