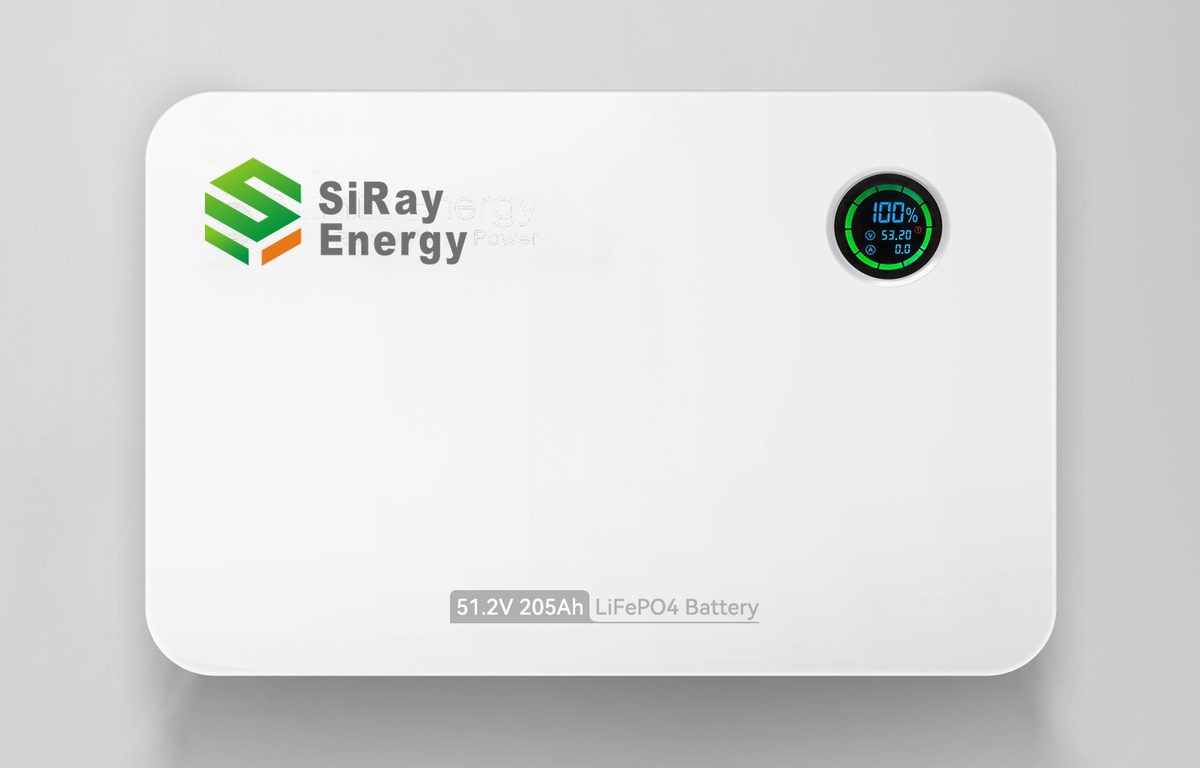

Wall Mounted LiFePO4 Battery SNE-ES SW10.0
- 10.5 kWh
- 51.2 V
- LiFePO4
- Wall Mounted
Send us your load list and we size it.
The larger wall-mounted cabinet in the SW range: 10.5 kWh on the same 51.2 V platform, with 150 A charge and discharge for heavier loads. Sixteen units parallel to 168 kWh without giving up any wall space.
Best for: Heavier household loads that need more current from a wall-mounted unit
Key Specifications
Battery Parameters
| Battery Type | 51.2 V 205 Ah LiFePO4 |
|---|---|
| Nominal Energy | 10.5 kWh |
| Usable Energy | 9.4 kWh |
Operational Parameters
| Peak Output Power (10 s) | 10.2 kW |
|---|---|
| Round-Trip Efficiency | >97.5% |
| Nominal / Operating Voltage | 51.2 V / 44 – 58.4 V |
| Max Charge / Discharge Current | 150 / 150 A |
| Communication | CAN, RS485 |
| Ingress Protection | IP21 |
| Operating Temperature | -20 ~ 60 ℃ |
| Cooling Method | Natural Cooling |
| Installation | Wall Mounted, Indoor |
System Parameters
| Cycle Life | >6,000 (90% DOD / 25 ℃ / 0.5C) |
|---|---|
| Design Life | 20+ Years (25 ℃ @77 ℉) |
| Recommended DOD | 90% |
| Dimension (W×H×D) | 665 × 410 × 241 mm |
| Weight | 85 kg |
| Humidity / Altitude | 5% – 85% / <2000 m |
Certification
| Warranty | 5 Years |
|---|---|
| Safety Standard | UL 1973 / IEC 62619 / UN38.3 |
| Scalability | Max 16 pcs in parallel |
Where It Fits
- Homes that want to cut daytime grid import
- Homes with night-time autonomy requirements
- Off-grid houses with no utility connection
- Small commercial sites with a single-phase or three-phase board
Compatible Equipment
GHA towers need no external inverter. SNE-ES wall and free-standing units pair with Growatt, Solis, GoodWe, Sol-Ark, SRNE and DEYE hybrid inverters over RS485 / CAN.
